NRC —0.90Panels

ProductLux®

CategoryPanels

Fire RatingGroup 1 or Non-combustible

Approx Pricing Guide$130M2 - $490M2

Lead Time4-6 Weeks

SubstrateDecorLux | Fibre Cement Panels

Standard Panel Size2400/3000x1200mm

DecorLux®

DecorLux® acoustic ceiling and wall systems synchronise sound and space using human-centred design. Their robust perforated fibre cement construction delivers exceptional acoustic performance with a sleek, modern aesthetic. Using DecorLux® with Decor’s integrated acoustic backing system will further magnify your acoustic rating. Available in various joining options, this ingenious acoustic design integrates effortlessly with even the most ambitious architectural plan. DecorLux is a non-combustible material, and all profiles and finishes in the range are non-combustile.

Image 1/17

Documents

Key Features

Inside Or Out

Made from fibre cement, DecorLux® is mould-resistant, making it the ideal solution for outdoor and wet areas such as indoor swimming pools. DecorLux® is moisture-proof. It will not rot or warp.

Whilst suitable for external environments, it should not be exposed directly to the elements.

Flexible Design Details

DecorLux and DecorLux Max are available in a wide range of perforation sizes. The perforations can be programmed using our high-tech machinery into any pattern. Bevelled or recessed edges are also available.

Fire Compliant

DecorLux is non-combustible, meaning it will not burn if exposed to fire. It also comes with a Group 1 Fire Certificate.

Profiles

Items 1/34

AL125-S-50HOLE DIAMETER - 4.5MM SQUARE CENTRES - 12.5MM OPEN AREA - 13.1%

AL200-S-60HOLE DIAMETER - 6MM SQUARE CENTRES - 20MM OPEN AREA - 7%

AL250-S-50HOLE DIAMETER - 4.5MM SQUARE CENTRES - 25MM OPEN AREA - 2.5%

AL250-S-100HOLE DIAMETER - 10MM SQUARE CENTRES - 25MM OPEN AREA - 13.1%

AL400-S-60HOLE DIAMETER - 6MM SQUARE CENTRES - 40MM OPEN AREA - 1.77%

AL500-S-100HOLE DIAMETER - 10MM SQUARE CENTRES - 50MM OPEN AREA - 3.15%

AL500-S-300HOLE DIAMETER - 30MM SQUARE CENTRES - 50MM OPEN AREA - 28.30%

AL400-D-50HOLE DIAMETER 5MM DIAMOND CENTRES 40MM OPEN AREA - 2.45%

AL420-S-200+120HOLE DIAMETER - 20MM & 12MM SQUARE CENTRES - 42MM OPEN AREA - 11.13%

AL1000-D-300+100HOLE DIAMETER - 30MM & 10MM DIAMOND CENTRES - 100MM OPEN AREA - 7.85%

AL1000-D-300+570HOLE DIAMETER - 30MM & 57MM DIAMOND CENTRES - 100MM OPEN AREA - 32.59%

AL1000-S-570HOLE DIAMETER OPTIONS - 57MM SQUARE CENTRES - 100MM OPEN AREA - 25.50%

Toby Bishop Running Water 1BOPEN AREA 4%

Toby Bishop - Running Water 1B ReversedOPEN AREA 14%

Toby Bishop - Running Water 1AOPEN AREA 4.5%

Toby Bishop - Running Water 1A Reversed OPEN AREA 13.4%

Rachael Sarra - Turtle SeasonOPEN AREA 6.5%

Rachael Sarra - Country Currents Reversed OPEN AREA 14%

Rachael Sarra - Country CurrentsOPEN AREA 4.6%

Keisha Leon - Reform OPEN AREA 5%

Keisha Leon - Connections in Country Reversed OPEN AREA 15.5%

Keisha Leon - Connections In Country OPEN AREA 2.5%

Jenna Lee - SeedsOPEN AREA 4.5%

Jenna Lee - Seeds Reversed OPEN AREA 14.5%

Jenna Lee - BarkOPEN AREA 13%

AP250S-__SQUARE CENTRES - 25MM HOLE DIAMETER OPTIONS - 5, 6, 7, 8, 10, 12mm

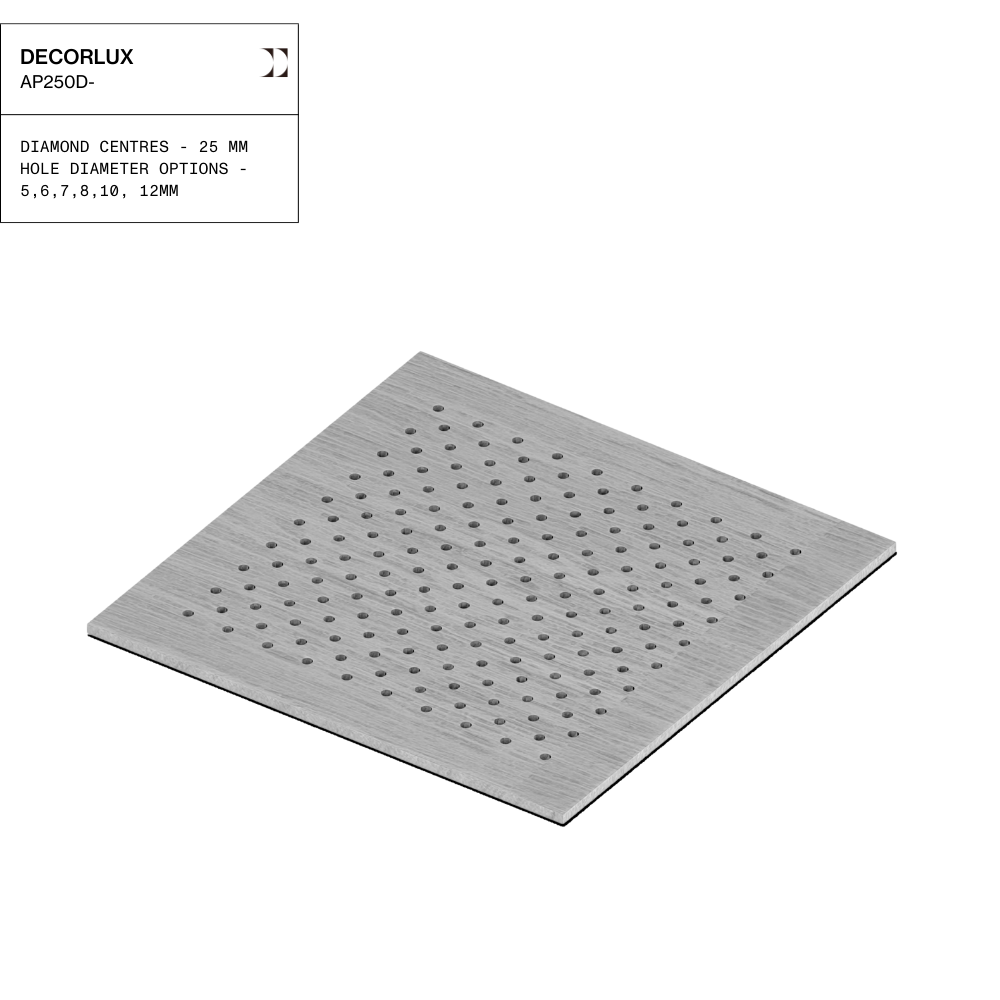

AP250D-__DIAMOND CENTRES - 25MM HOLE DIAMETER OPTIONS - 5, 6, 7, 8, 10, 12mm

AP125AXX-__STAGGERED CENTRES - 12.5MM HOLE DIAMETER OPTIONS - 5, 6, 7MM

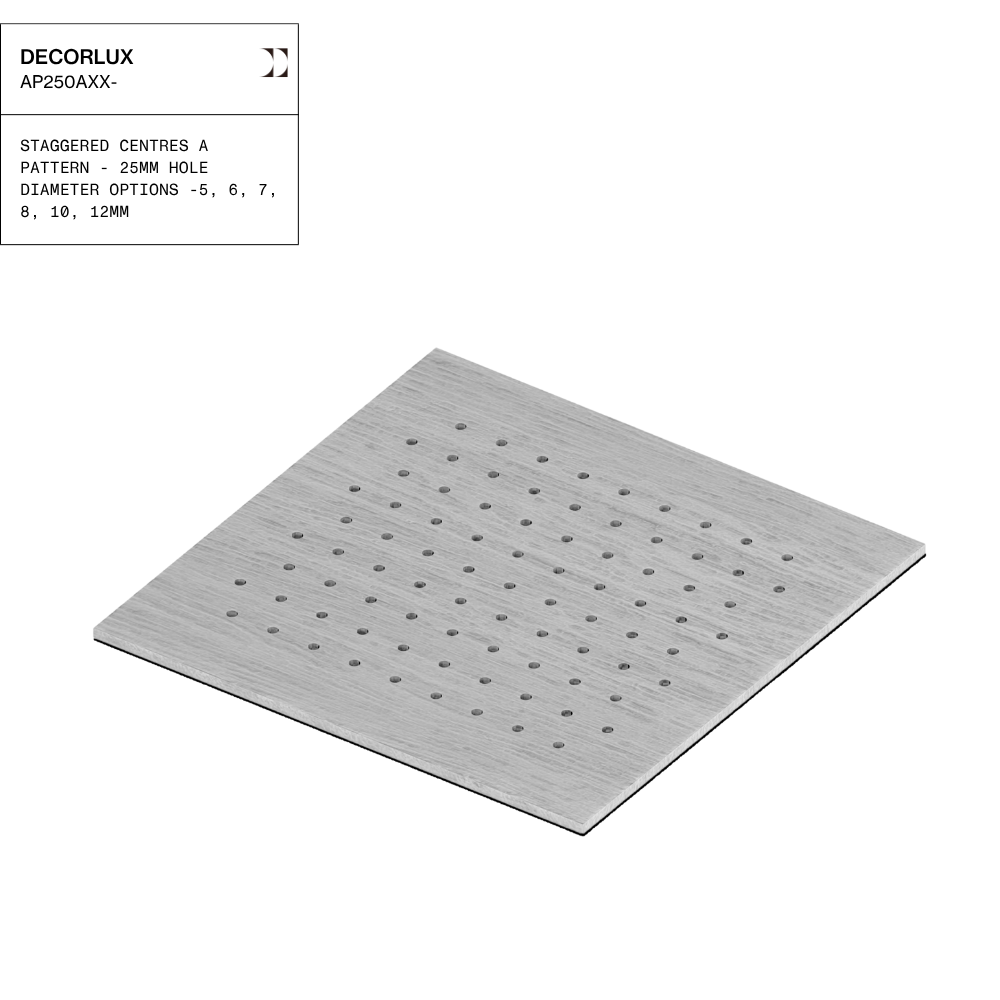

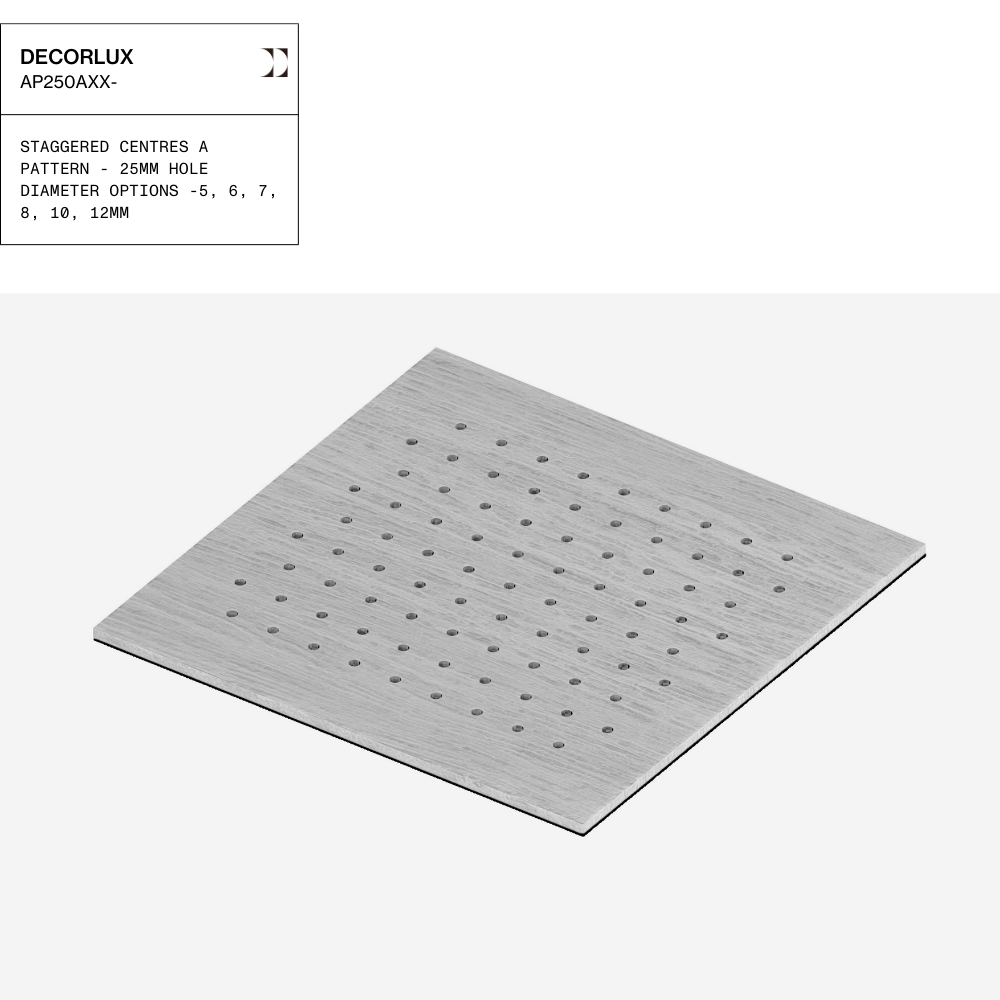

AP250AXX-__STAGGERED CENTRES - 25MM HOLE DIAMETER OPTIONS - 5, 6, 7, 8, 10, 12MM

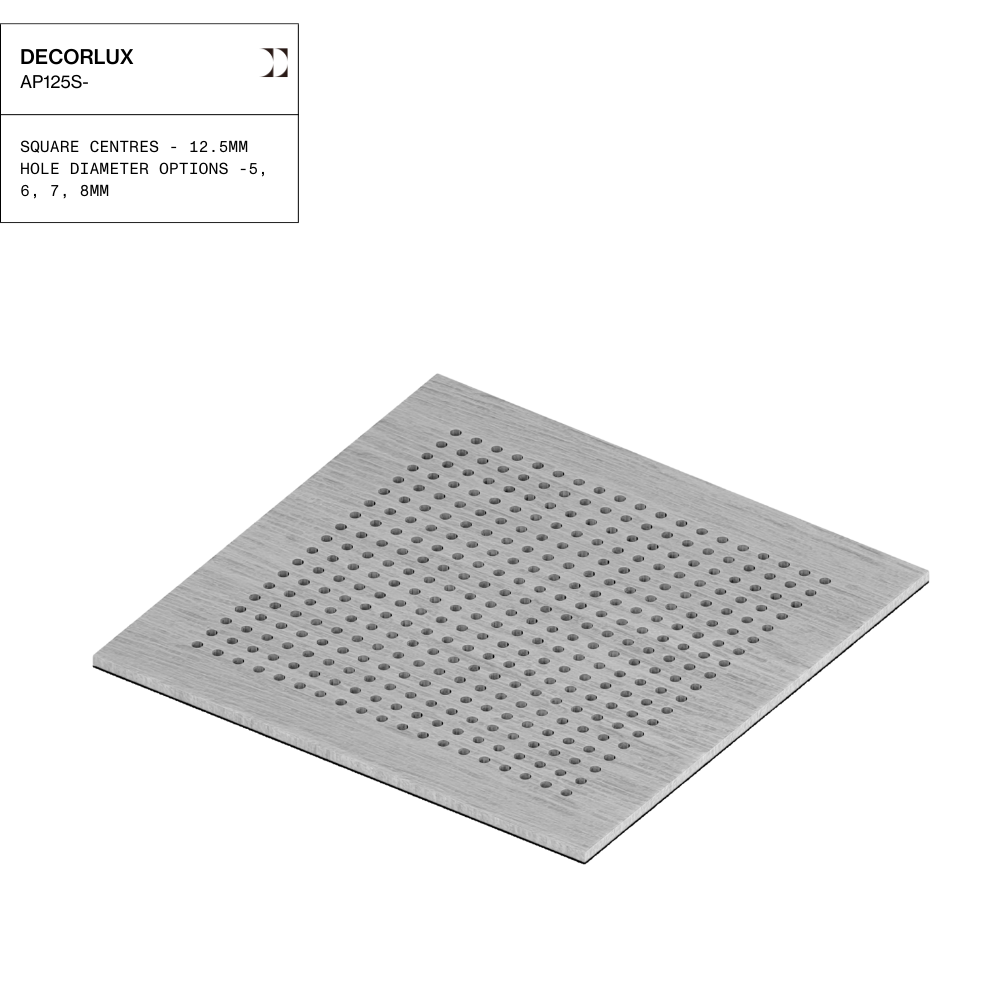

AP125S-__SQUARE CENTRES - 12.5MM HOLE DIAMETER OPTIONS - 5, 6, 7, 8mm

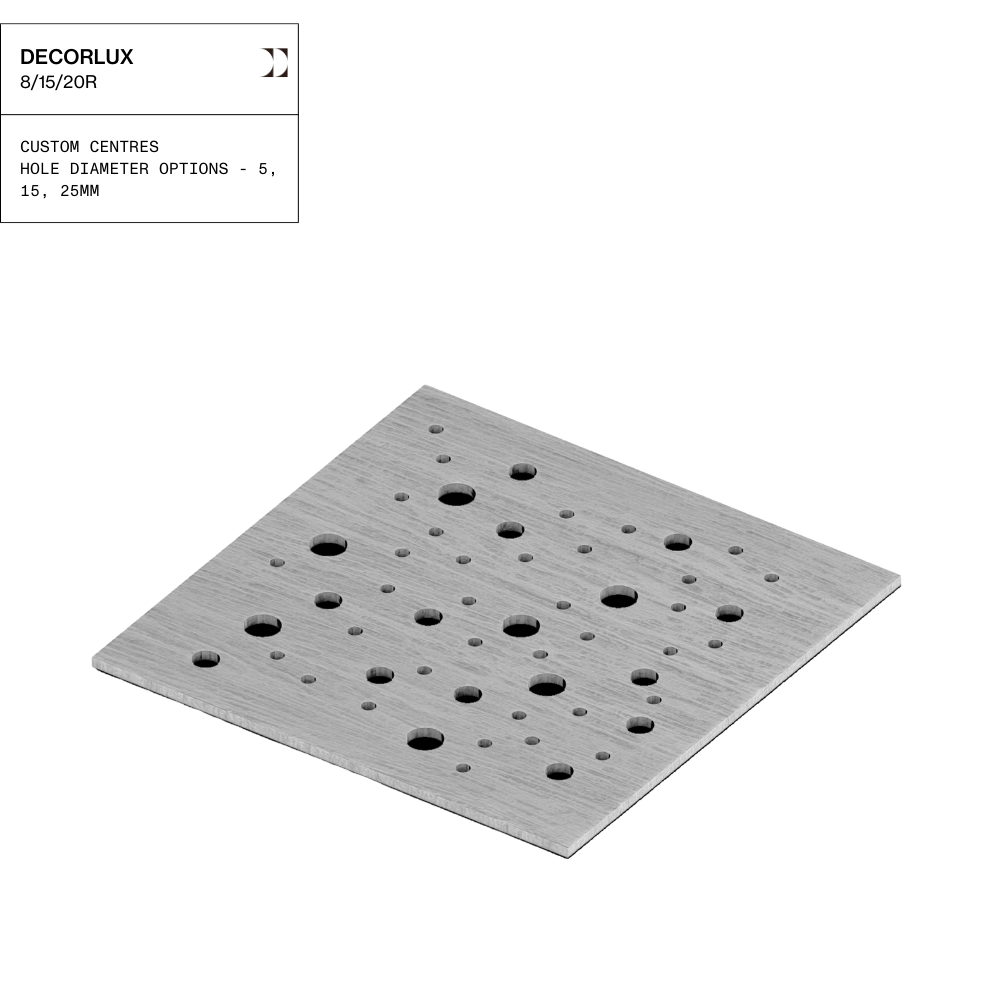

8/15/20RCUSTOM CENTRES HOLE DIAMETER OPTIONS - 8, 15, 25MM

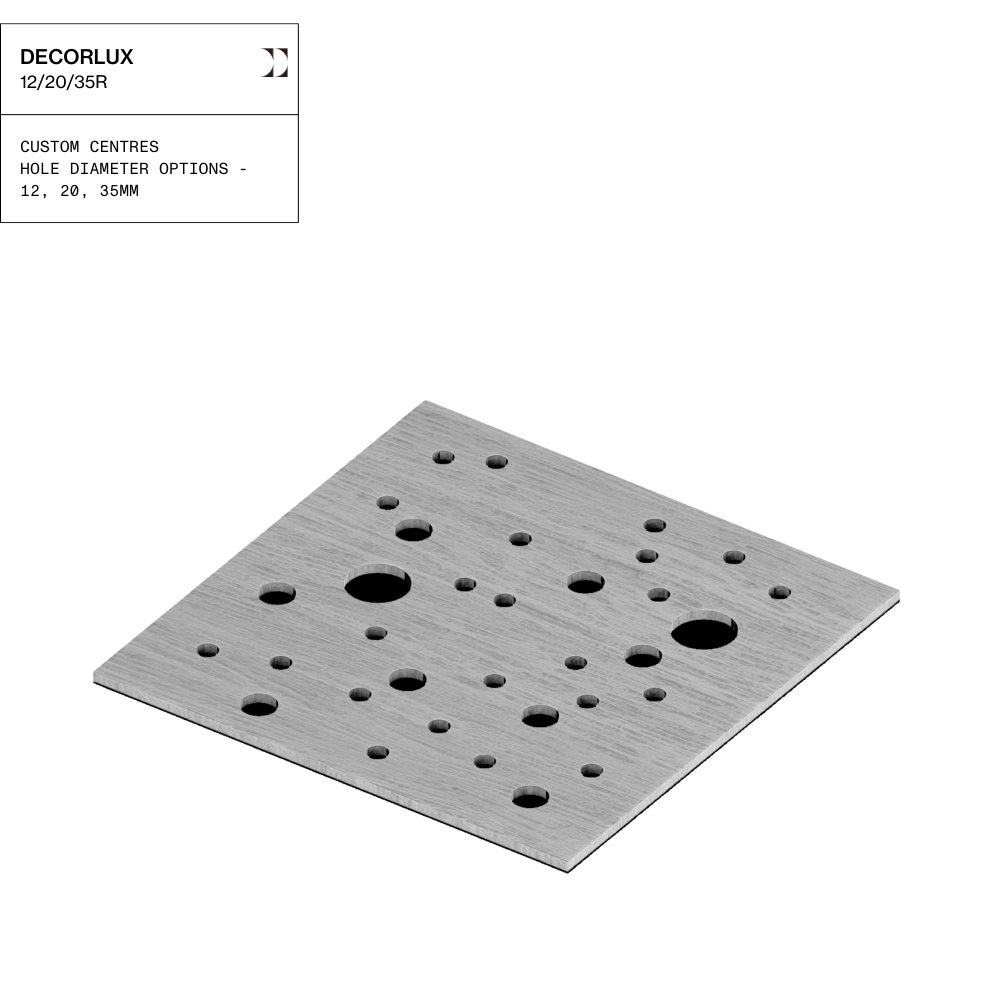

12/20/35RCUSTOM CENTRES HOLE DIAMETER OPTIONS - 12, 20, 35MM

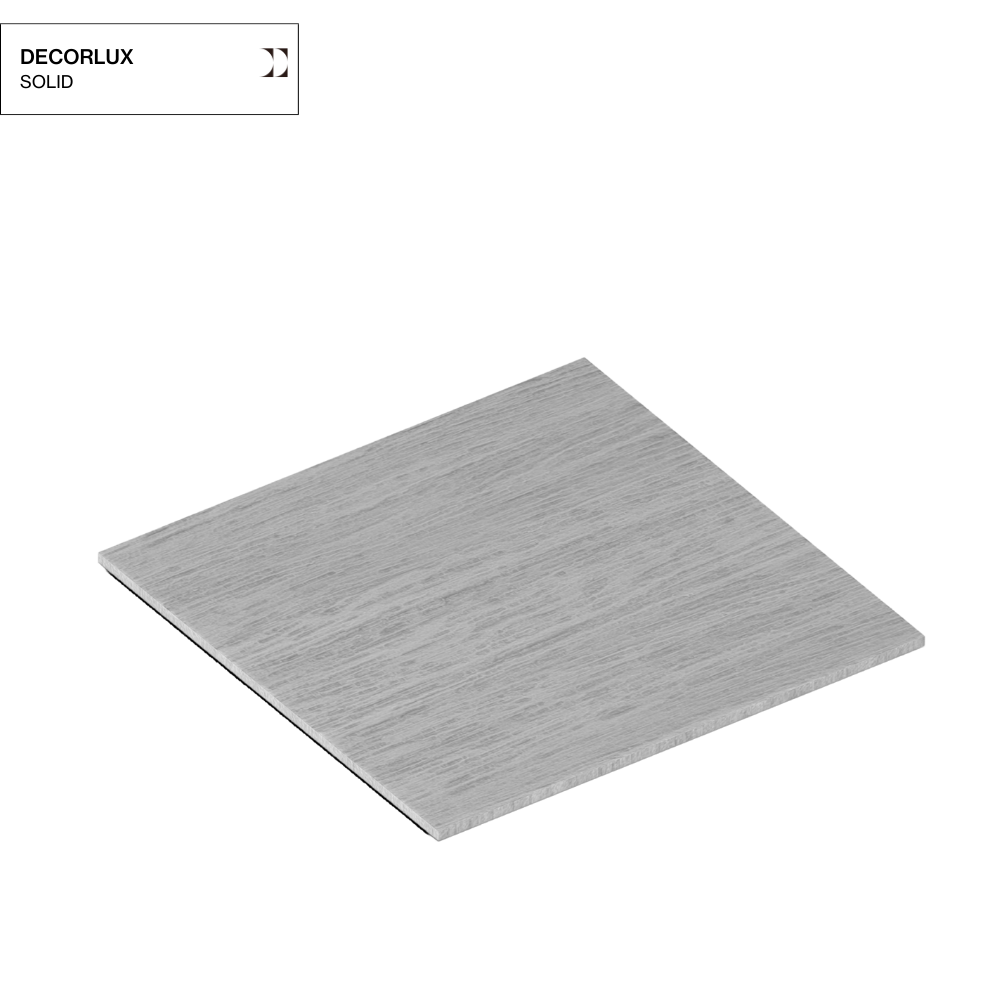

SolidSolid

Custom

VIRTUAL SAMPLES

Items 1/2

AL250-S-100 - WallRaw

AL250-S-100 - CeilingRaw

Finishes

SmartLookRawUndercoated2 Pack Poly Paint

BIRCH

HOOP PINE

TASMANIAN OAK

BLACKWOOD

AMERICAN OAK

BLACKBUTT

SPOTTED GUM

WALNUT

Substrates

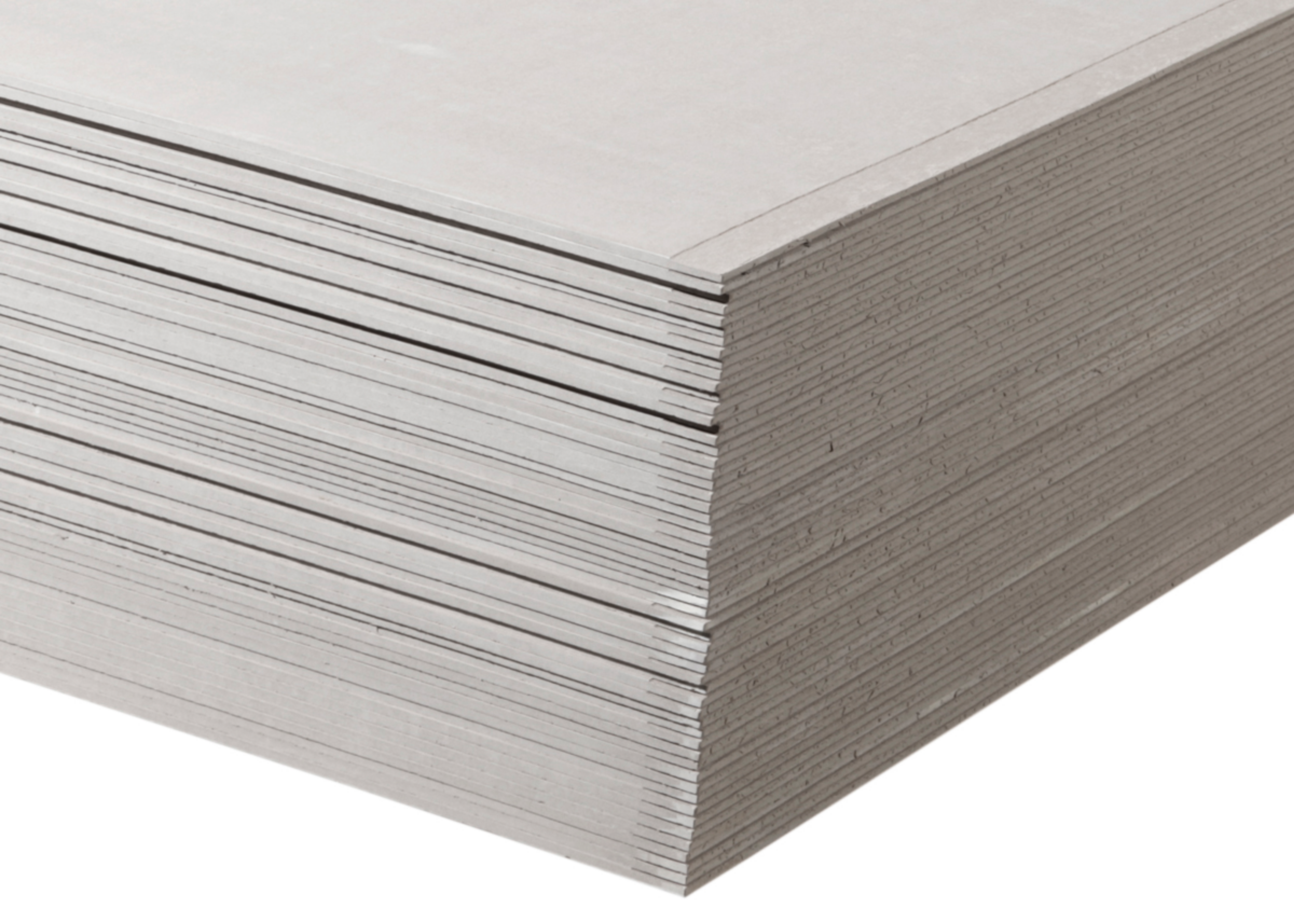

Fibre cement

Recommended Fixing Methods

WallingCeiling

Visible - Face Fixed / Direct Fix

Certifications

GECA Certified

Supply Nation Certified

Maintenance

Annual cleaning and maintenance of the DecorLux® linings are recommended. Ensure joints are free of dirt and grime and follow the coating manufacturer’s instructions for surface cleaning.
